Condition : New
Transmission Type : Manual
Emission Standard : Euro 3 4 5 6
Fuel Type : Diesel
Dimensions (L x W x H) (mm) : /
Place of Origin : Hubei, China
Brand Name : HUATE
After-sales Service Provided : Onsite Installation, Online support, Free spare parts
Color : Custom's Requirement
Warranty : 1 Year
Price : $17,000/units 1-9 units
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders








Vehicle technical parameters | ||||||||
product name | Sprinkler truck | product model | HTT 5181GSSZHG5X45F1 | |||||
gross mass (Kg) | 18000 | Production address | Suizhou City, Hubei Province | |||||
Rated load mass (Kg) | 10840,10775 | outline dimension (mm) | 8015,8615,8265,8865×2500×3040 | |||||
curb weight (Kg) | 7030 | axle weight | 6500/11500 | |||||
Number of cab members (person) | 2,3 | number of axles | 2 | |||||
Approach angle / departure angle of (°) | 16/12 | Front suspension / rear suspension (mm) | 1330/2185,1330/2435 | |||||
wheel base | 3800,4200,4500,4700,5200,5600,6100 | Top vehicle speed (Km/h) | 89 | |||||
Chassis technical parameters | ||||||||
Chassis model | ZZ1187K561DF1Z | Chassis brand | truck chassis | |||||
number of axles | 2 | Number of tires | 6 | |||||
tyre size | 10.00R20 18PR,275/80R22.5 18PR,295/80R22.5 18PR,295/60R22.5 18PR | |||||||
Number of steel plate spring sheets | 1/1+1,2/2+2,3/3+2,3/4+3,11/9+8,11/10+9,8/9+8,3/9+8,3/- | |||||||
front gauge (mm) | 1940,1980 | rear track (mm) | 1800,1860 | |||||
Fuel types | diesel oil | ABS | have | |||||
Chassis wheelbase | 3300,3850 | Tank volume | 14m³ | |||||
effluent standard | Euro 3 4 5 6 | |||||||
engine type | displacement (ml) | power (Kw) | horsepower | |||||
D45TCIF1 | 4461 | 162 | 220 | |||||
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | ||||||||







|
|

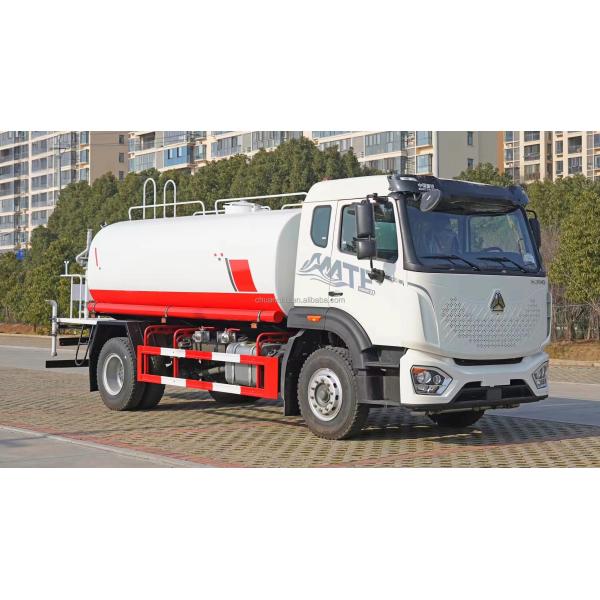

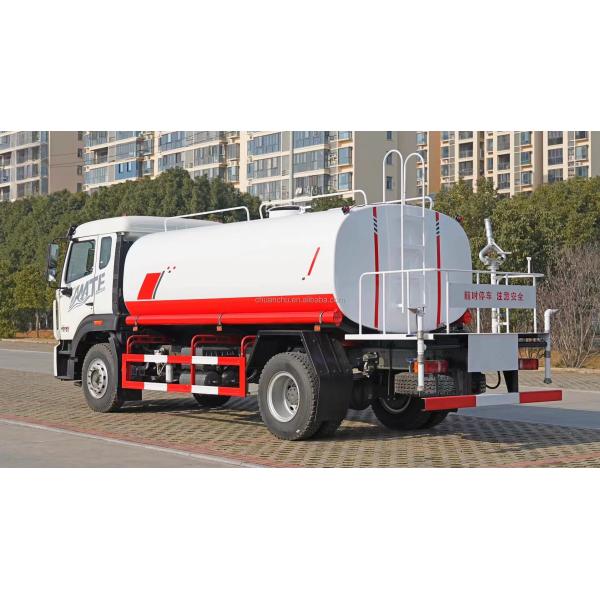

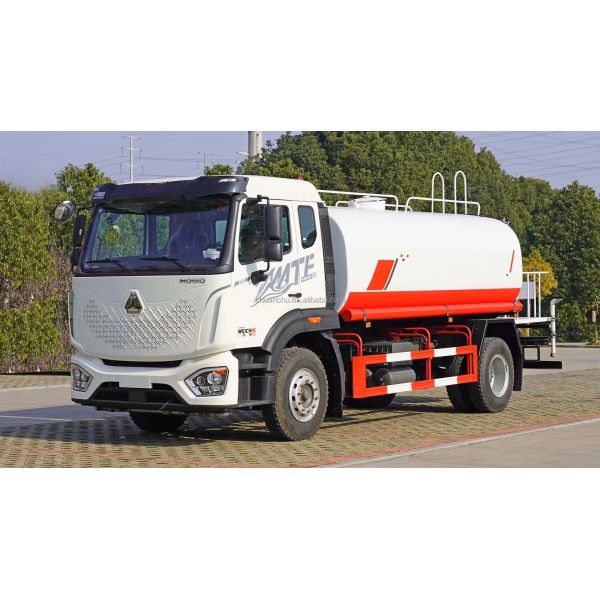

Dimensions L x W x H mm / Water Bowser Truck and Good Multifunctional Drinking Water Tanker Truck Water Sprinkler Truck Images |
